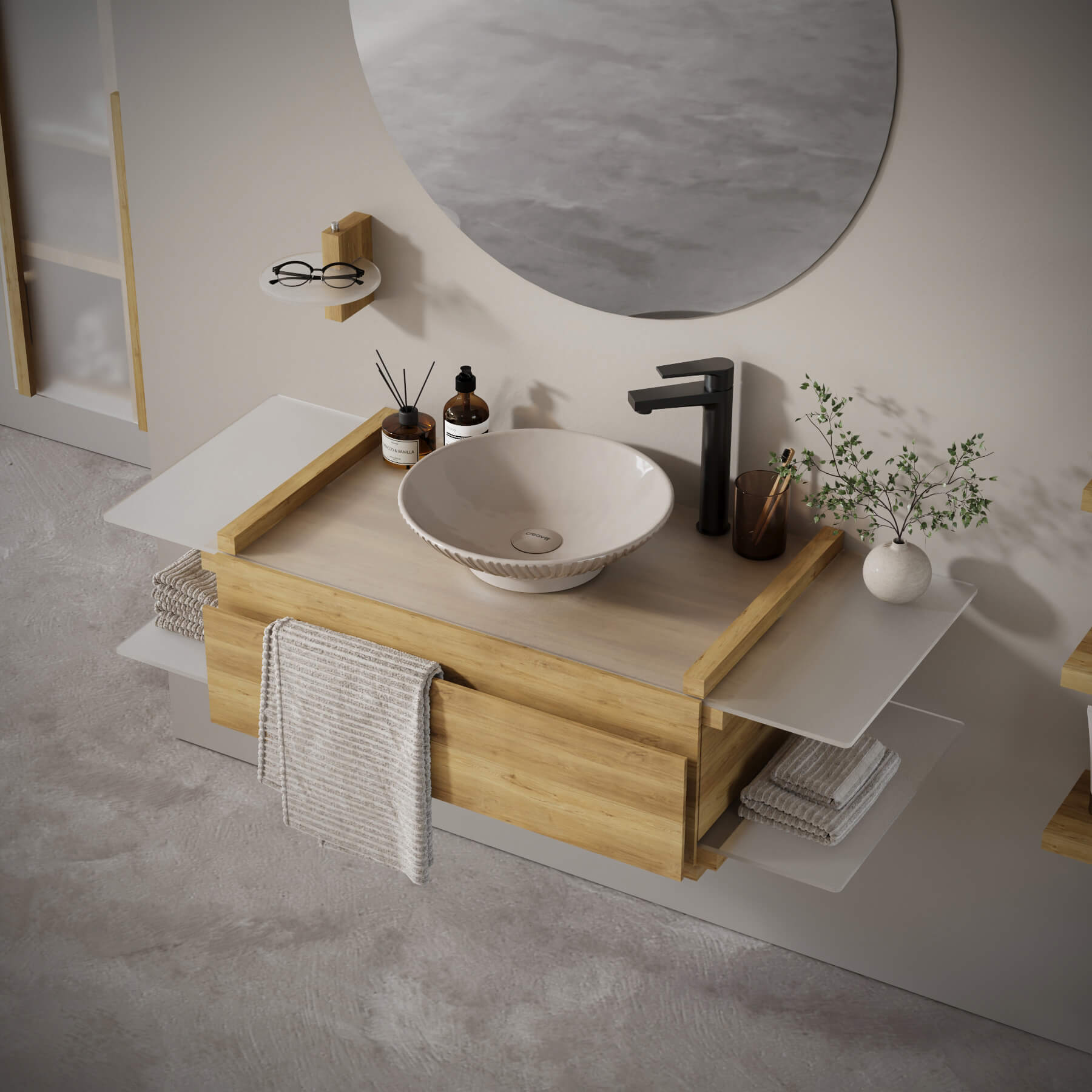

Oniva Washbasin Unit 120cm With Drawer

ONİVA – Technical Structure and Product Features

1. Structure and Assembly System

• The ONİVA model is designed to be assembled without the need for any hand tools, using a completely mortise and tenon (tongue and groove) interlocking system.
• All parts are detachable, reassemblable, and feature a long-lasting connection geometry.

2. Material and Solid Structure

• The product is manufactured using 100% solid wood throughout.
• Main structural elements are 30 mm thick solid wood,
• Drawer boxes and front panels (klapas) feature an 18 mm thick solid wood structure.
• All wood used is FSC certified.

3. Wood Processing and Drying Process

• All solid surfaces are processed in CNC machining centers with precision tolerances.
• The wood is dried in fully automated kilns to a moisture content of 10–12%.
• After drying, the wood is sorted for solid-length (no finger-joints) and joined using the edge-glued lamination method.

4. Surface Protection and Natural Finish

• 100% natural teak oil is applied to protect solid surfaces against water and moisture.
• No chemical varnishes or synthetic surface coatings are used.
• All materials used are 100% biodegradable and recyclable.

5. Glass, Metal Accessories, and Surface Treatments

• Glass: Special opaque semi-transparent, extra-clear, 4+4 mm laminated glass is used.
• Glass pins and metal accessories:
• Pre-treatment via phosphate bath
• Durability control via salt spray test
• Electrostatic powder coating
• Result: High corrosion resistance and long-term paint stability

6. Drawer, Door, and Mechanism Details

• Drawer rails are manufactured entirely from solid material using a dovetail joint system.
• Door hinges:
• Statically painted sheet metal body
• M10 transmission shaft
• Produced via specialized CNC turning (lathe) and electrostatically painted.

7. Modular System and Sustainability

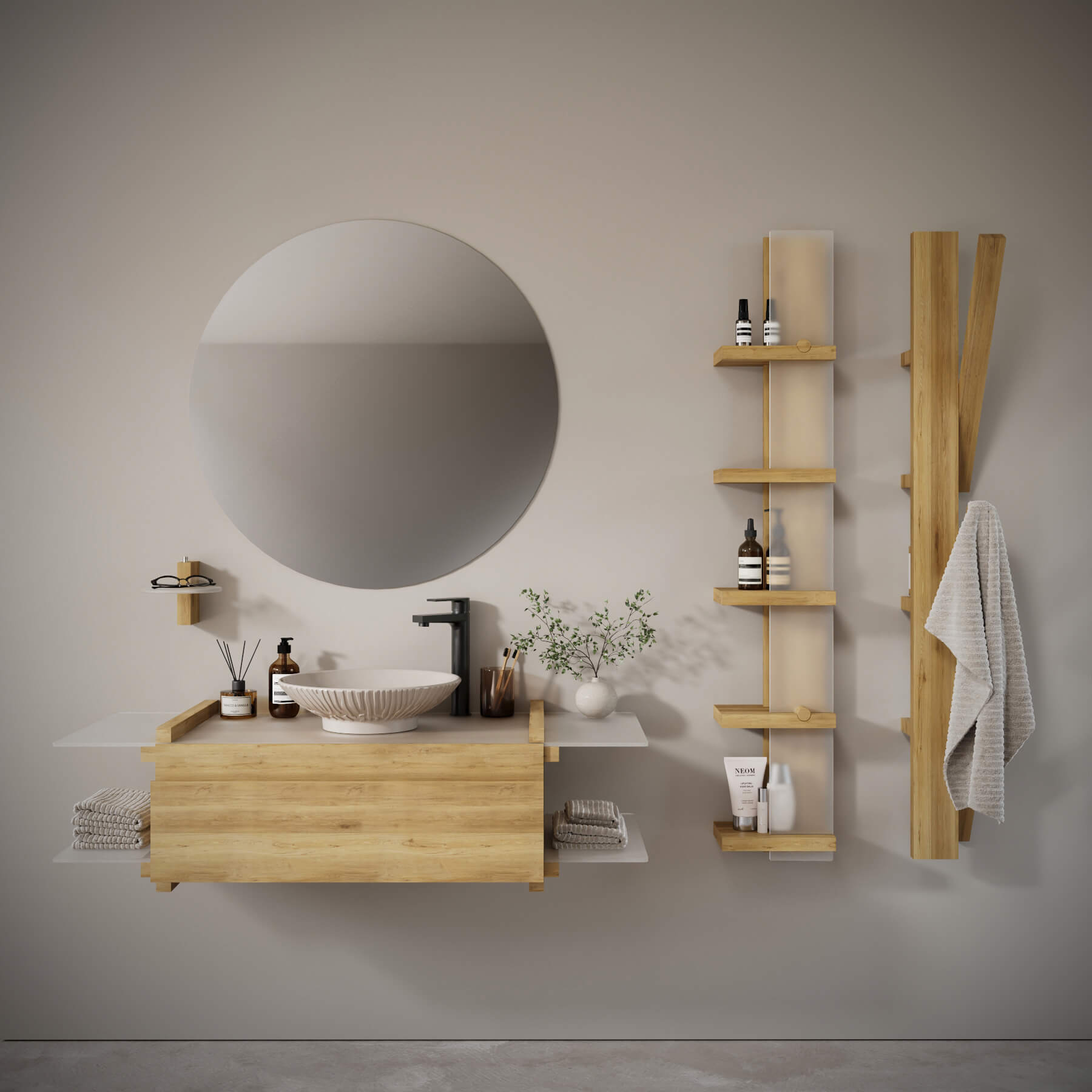

• The system consists of a total of 6 modular units:
1. Base unit
2. Tall cabinet
3. Hanging unit for towels
4. Multi-tier wall-mounted shelf for accessories
5. Wall-mounted soap dispenser and accessory unit (sink-side)
6. Mobile towel rack unit
• Zero-waste production is achieved through CNC optimization cutting.
• Wood scraps that cannot be used in furniture production are repurposed for charcoal production, ensuring a circular production cycle.
